Gas Welding Table

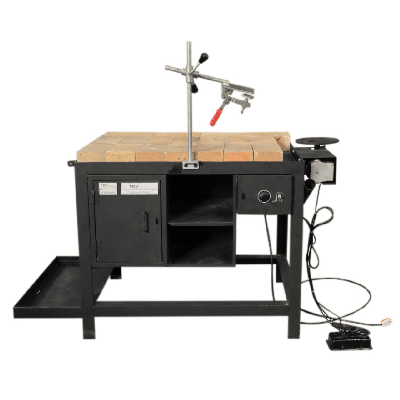

Gas Welding Table

Gas Welding Table for Gas 1200 mm x 815 x 750 mm Fire Bricks on stand with positioned

Technical Specifications :

  • Heavy Duty M.S. STRUCTURE with Angle - 45 x 45 x 5 mm
  • Length: 1200 mm
  • Breadth: 815 mm
  • Height 750 mm.
  • Gas Cylinder Mounting arrangement
  • Table Top arrangement for Keeping Bricks
  • Positioner is Mounted on One side of the table
  • Details of Positioner: Motorized Positioner (DC Motor) with speed controller and operated by foot switch. Turn table with slots to Keep JIGs or To clamp job
  • TO HOLD THE JOB for GAS welding in any position: Vertical and Horizontal Pipe are Fixed with coupling to adjust Height and Length both and Horizontal Pipe has One clamp to hold the JOB
  • Fire Brick Size: 24 x 12 x 8 cm Approx.
  • Bricks are provided as per size of table top requirement.
  • Extra Brick: 06 Nos. Required in addition
  • Water Tank made from Galvanized Sheet and it isFitted to the Table at one End
  • Accessories Box is fitted in the Table to keep all Gas welding Accessories
  • Gas welding TorchStand Provided with table.
  • The Table is provided with One Shelf/Partition to Keep Jobs and other items in the Table.

Extra Optional Components and accessories listed as per below can also be supplied as pe the buyer requirement.

  • Positioner for Spare
  • Torch
  • Speed Controller
  • Foot Switch

Pre-Installation Advice:

  • Floor Area Requirement: 7 ft. x 7 ft.
  • Electrical Supply Requirement: 1 No. Single Phase, 5 Amp. Power Supply Connection Required
